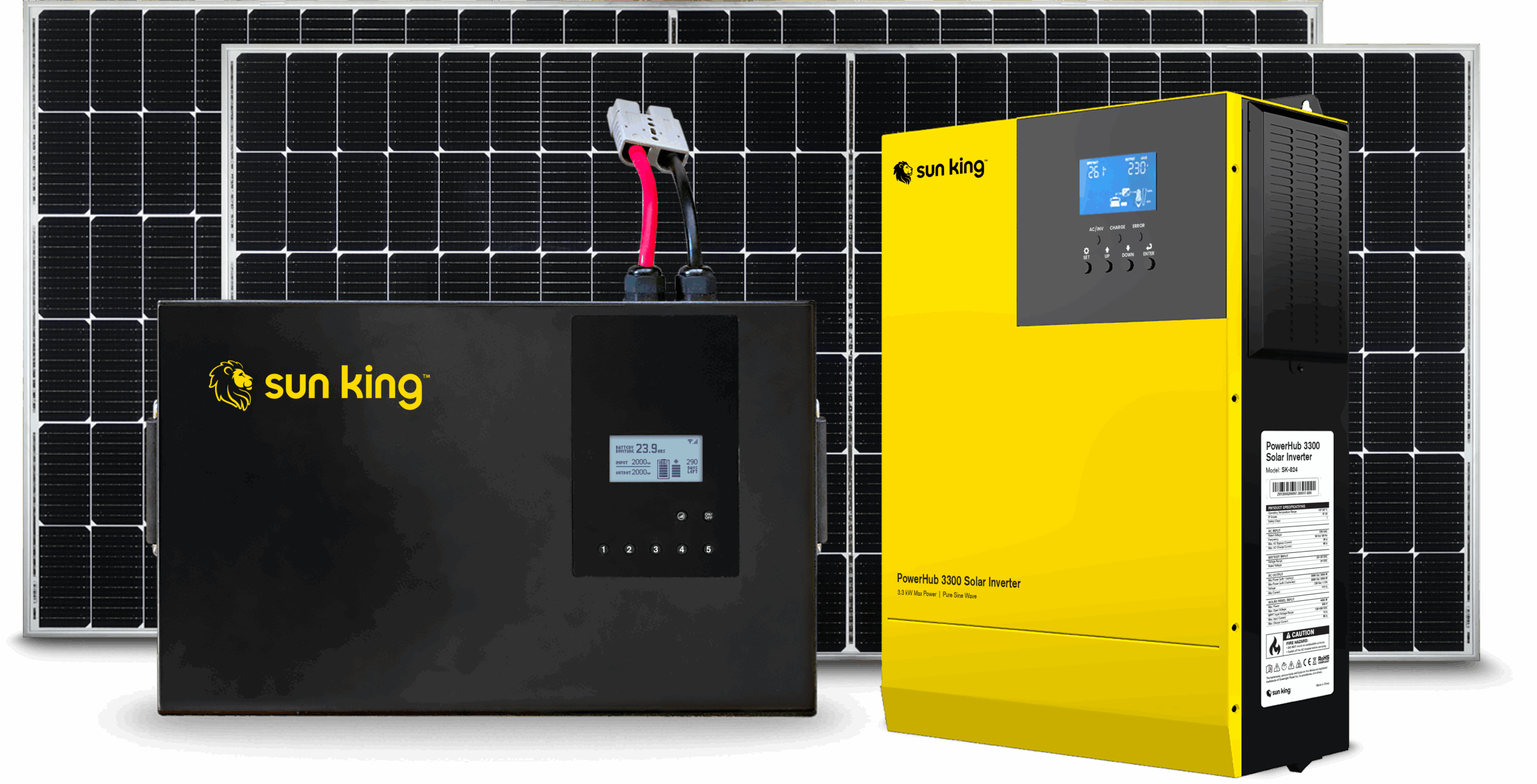

PowerHub
Power your lights and standard electrical appliances with Sun King’s PowerHub solar inverter and energy storage systems for modern homes and businesses. Customised to your needs and fully-integrated into your electricity distribution system to keep you powered at night, during outages, and when you want to go off-grid.
Build Your Ideal Solar Inverter System
From lights, refrigerators, and televisions to computers, food processing equipment, and light machinery, our solar inverter systems can be adapted to power the number and types of appliances you need.
Select one of our standard PowerHub configurations or speak to our expert advisors to design a custom system – the choice is yours.
The Benefits
Up to 30 kW of inverter power
10-year battery life
Comprehensive protection against power outages
Reduce the impact of rising energy prices
Easily expandable post-purchase

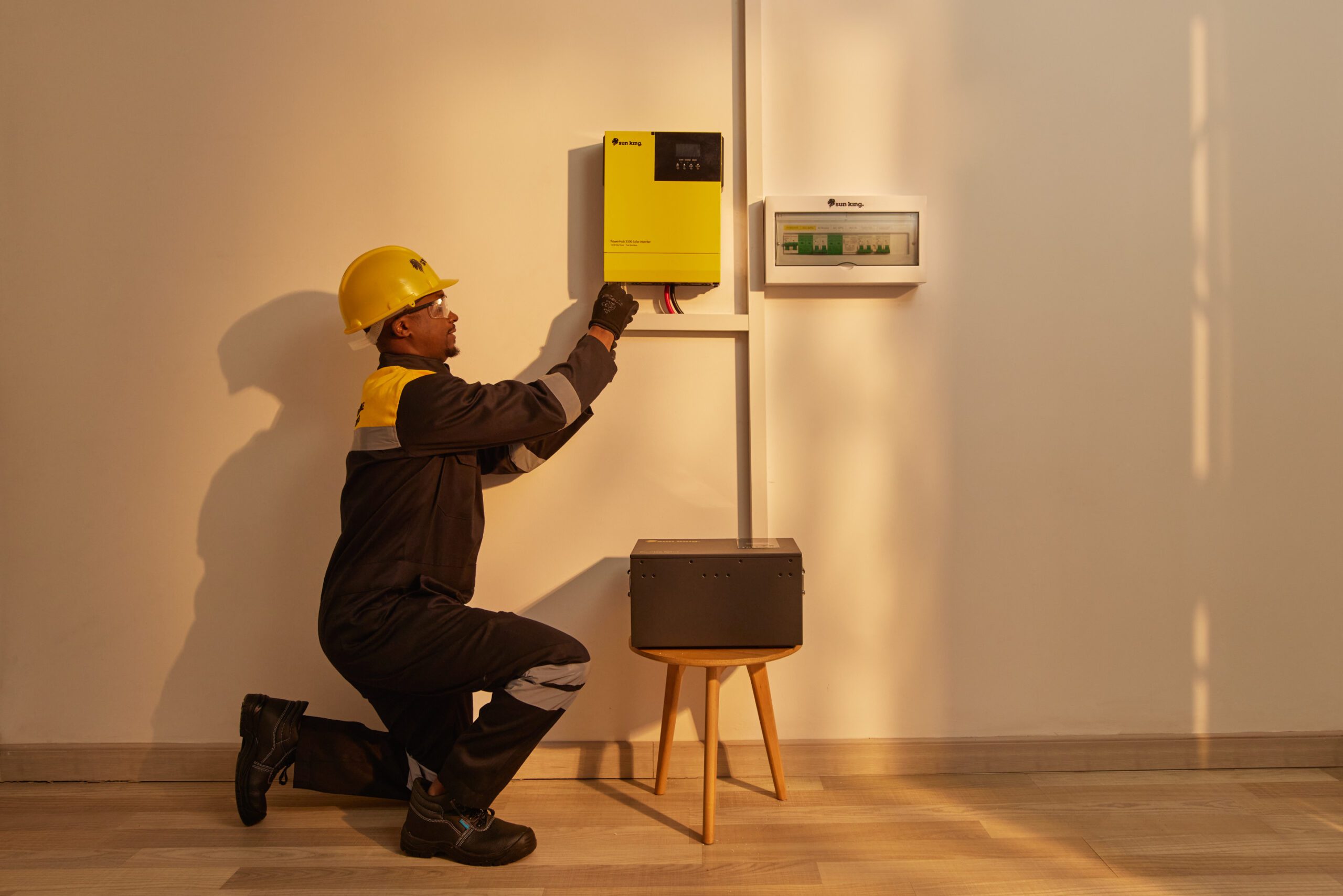

Professional installation and after-sales support included
How it Works
PowerHub systems draw power from both the electrical grid and their solar panels. The hybrid inverter powers appliances directly while simultaneously charging a battery, which reduces your home’s energy costs and provides an uninterrupted power supply.

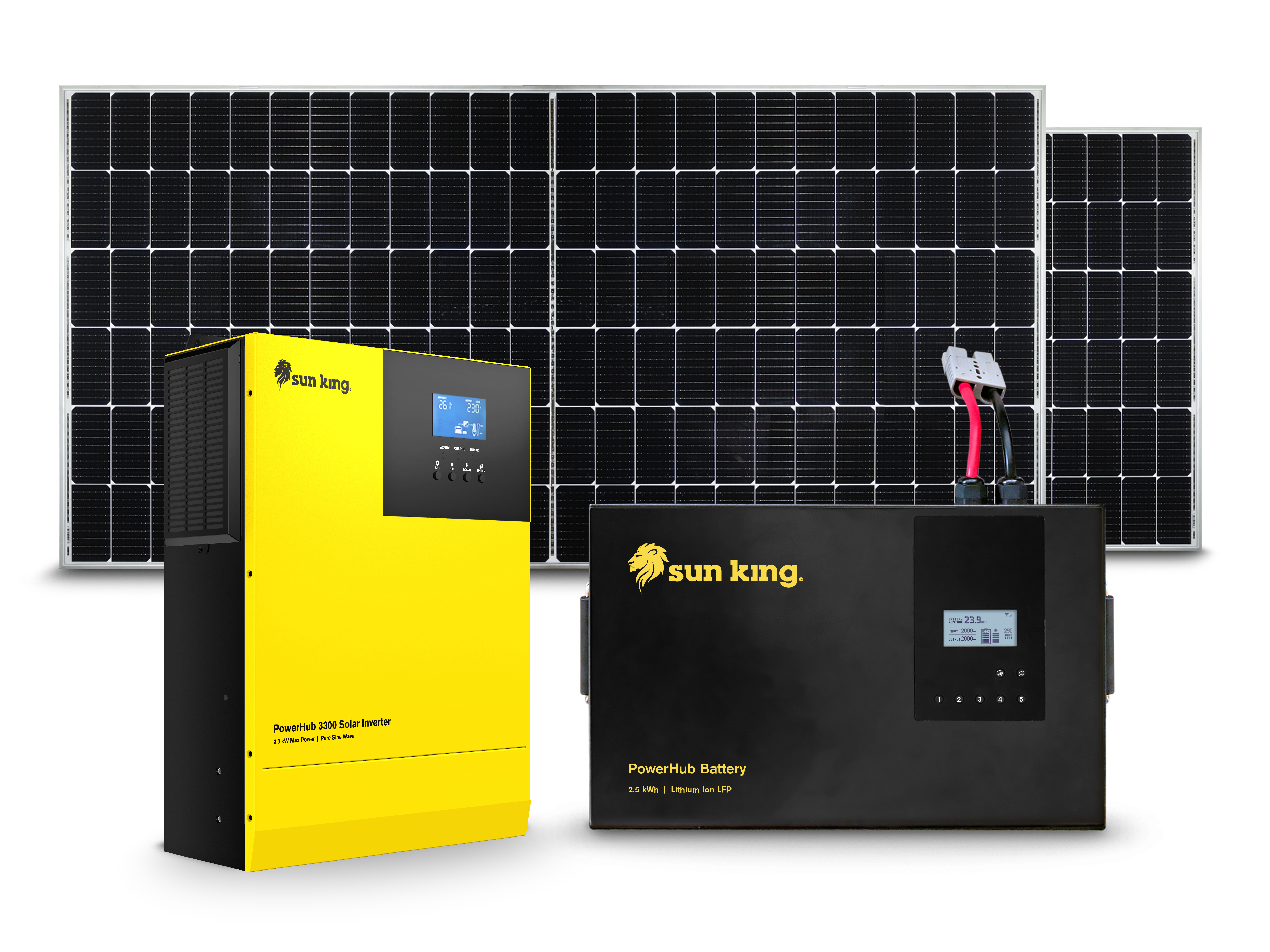

These systems have three main components: solar panels, an inverter, and a battery.

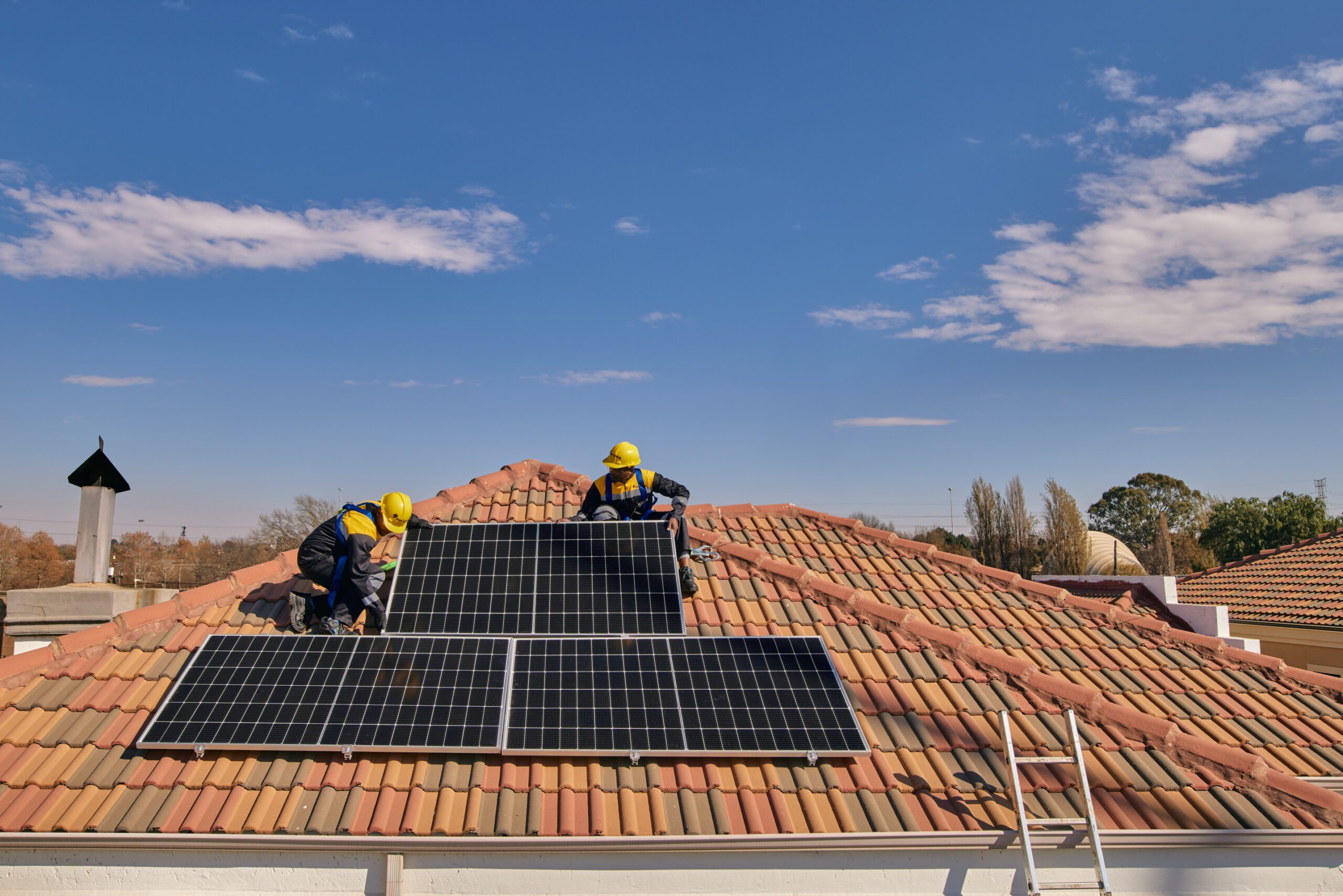

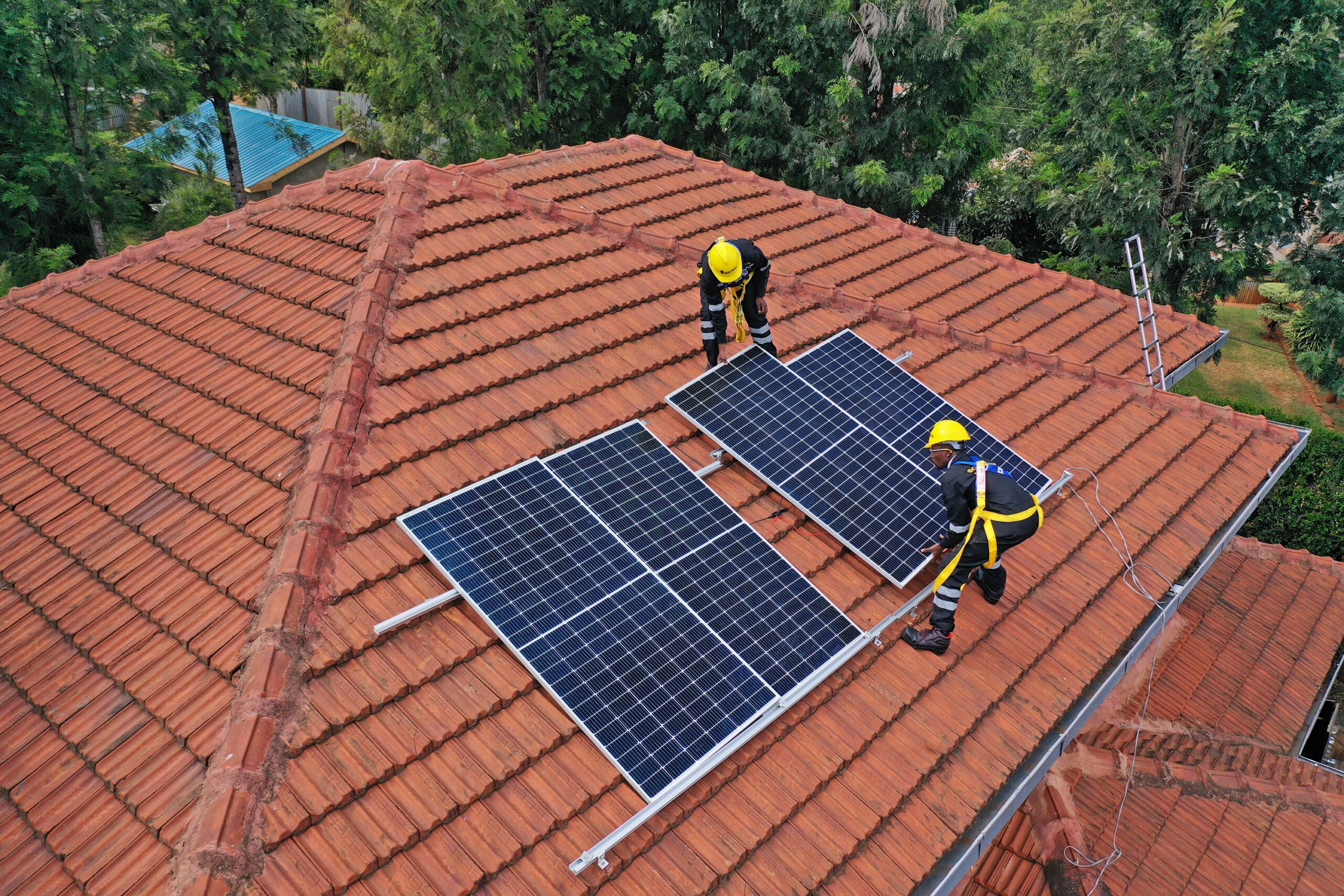

- The solar panels capture the energy of sunlight hitting your roof.

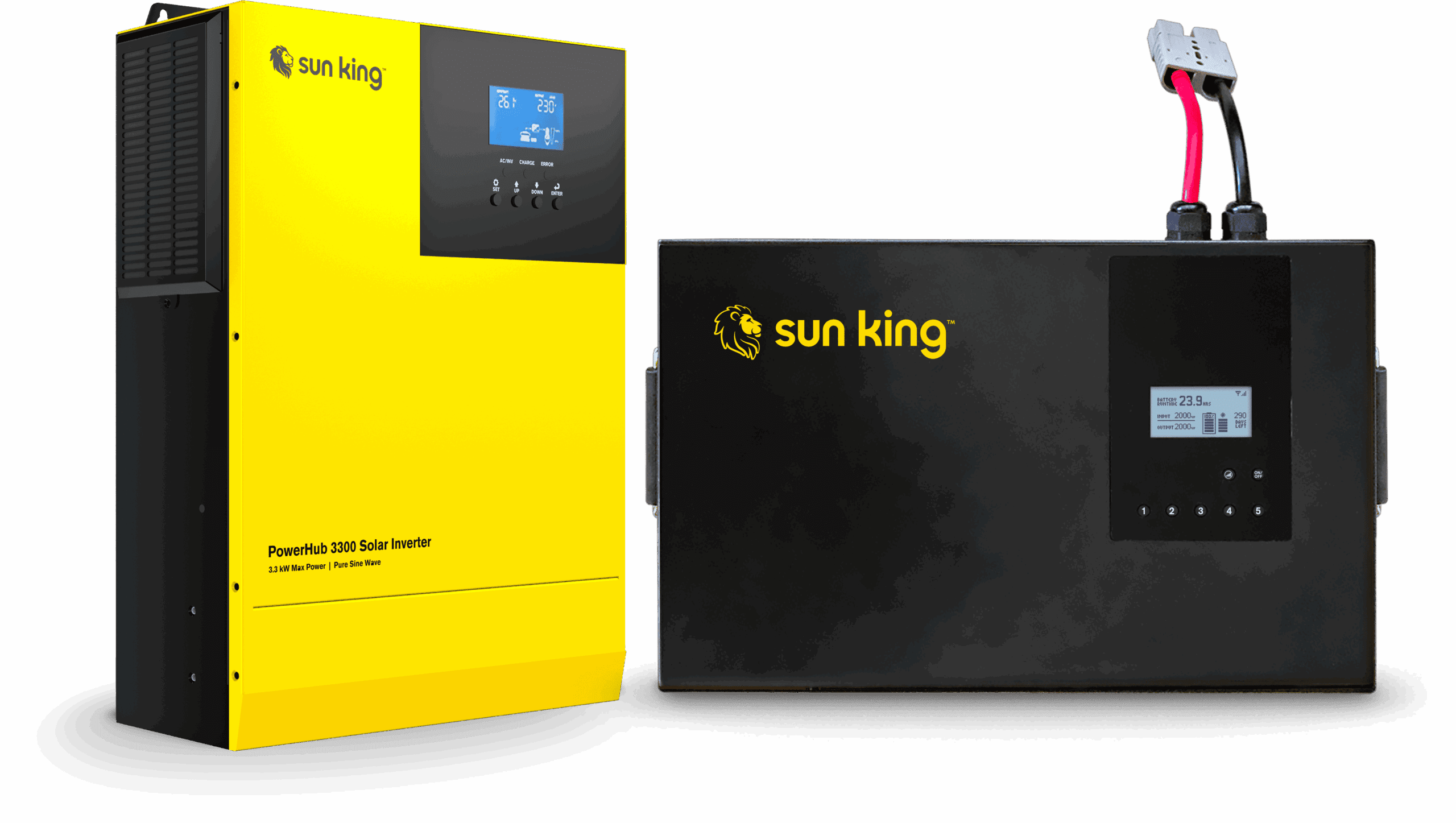

- The inverter turns this energy into electricity and connects it to the circuits that your home uses to power lights and appliances.
- The battery stores electricity to keep your home running at night or when the electrical grid goes down.
Which PowerHub System is Right for You?
Inverter power
2 kW AC output
Inverter power
3.3 kW AC output
Battery storage
2.5 kWh
Lithium-ion LFP battery
Battery storage
5 kWh
Lithium-ion LFP battery
Solar power
1.8 kWp – 2.7 kWp
Solar power
1.8 kWp – 3.6 kWp
1 x Heavy-load appliance
*Water pump under 1 horsepower
+
2 x Medium-load appliances
+
3 x Light-load appliances
+
8 x Very-light-load appliances
2 x Heavy-load appliances
*Water pump under 1 horsepower
+
4 x Medium-load appliances
+
6 x Light-load appliances
+
16 x Very-light-load appliances
Payment plan
₦54,800 per week
80 weekly payments, ₦274,000 down payment
Payment plan
₦78,700 per week
80 weekly payments, ₦393,500 down payment
Buy upfront
₦2,740,000
Buy upfront
₦3,935,000
Inverter Specifications
Max AC Output
Core: 2 kW
Plus: 3.3 kW
Rated Output Voltage (Vac)
230 Vac, ±5%
Output Voltage Waveform
Pure sine wave
Maximum Efficiency
≥92%
Rated Input Voltage
220/230 Vac
Frequency
50 Hz/60 Hz (auto-detection)
Maximum Charge Current
0-80 A, adjustable
Rated Battery Input Voltage
24 V (minimum starting voltage 22 V)
Battery Specifications
Battery Storage
Core: 2.5 kWh
Plus: 5 kWh
Lithium-ion phosphate (LFP) battery
10-year battery lifespan with typical daily use (over 2,500 cycles)
Output Voltage Range
21.6 V – 27.2 V
LCD Display System Displays
Connection, usage, and battery consumption
Solar Panel Specifications
Maximum Power
Core: 1.8 kWp (4 x 450 Wp solar panels)
Plus: 2.7 kWp (6 x 450 Wp solar panels)
Technology
Monocrystalline
Open-Circuit Voltage (Voc)
49.35 V
Short-Circuit Current (Isc)
11.61 A
Maximum Power Voltage (Vmp)
41.56 V
Maximum Power Current (Imp)
10.83 A
